Color Steel Glazed Tile / Roofing Sheet Roll Forming Machine PLC Control

Name: Color Steel Glazed Tile Roofing Sheet Roll Forming Machine PLC Control
Brand: ZHONGHENG
Price: 11000 USD

China Color Steel Glazed Tile / Roofing Sheet Roll Forming Machine PLC Control wholesale

Brand Name : ZHONGHENG

Model Number : ZH840

Certification : CE/SGS/ISO9001

Place of Origin : China

MOQ : 1 set

Price : USD11000-15000/set

Payment Terms : Western Union, T/T, L/C

Supply Ability : 300 sets/months

Delivery Time : 25working days

Packaging Details : Waterproof plastic film cover

Feeding Width : 1000 mm or custom

Models : 840 roofing

Forming Stations : 11

Certificate : CE

Control system : PLC control

Machine structure : 350 H beam

Chains : 1 inch

Speed : 10-15 m/min

PLC brand : panasonic

type : Glazed Tile Roll Forming Machine

Contact Now

Color Roof Panel Steel Sheet Roll Forming Equipment Machine For Roofing sheet

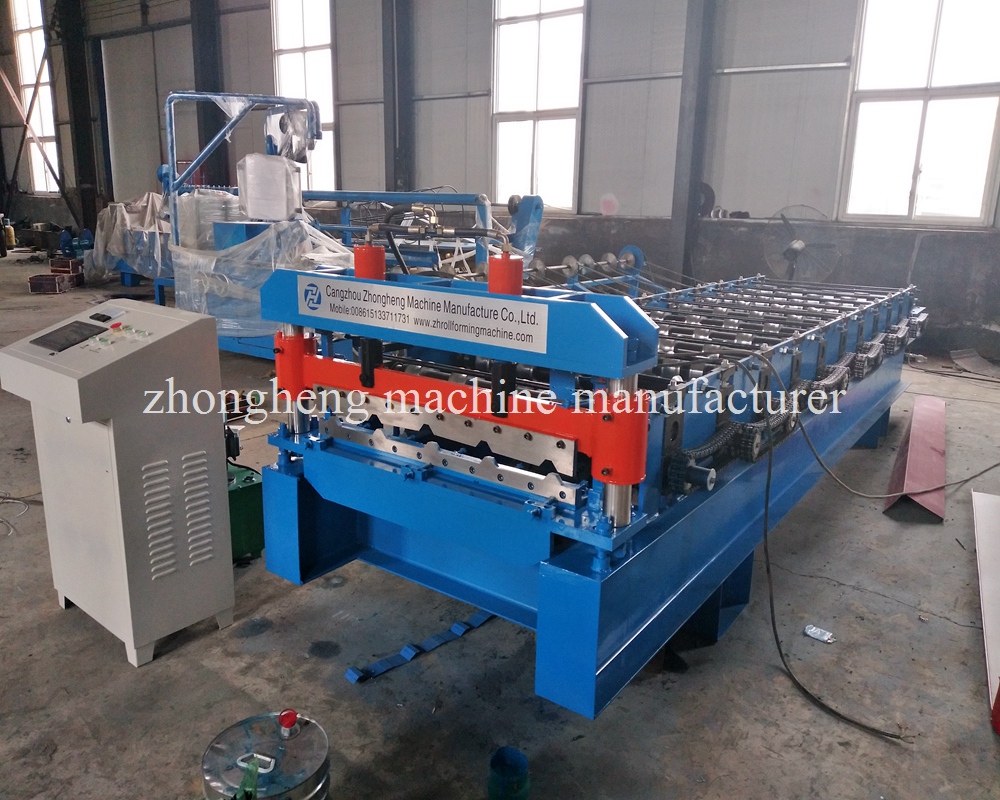

Machine Pictures

Profie panel pictures

Specifications
The machine is standard machine for roofing use.Its popular in China market and south America market.
The main advantages of kexinda double layer corrugated machine price :
•Variable frequency speed control
•Multi-purpose for overlap connection
•Auto power off.

1	Power Requirement	Voltage	380v/3ph/50hz
		Main Motor power	4kw
2	Forming speed		8-15m/min
3	Forming stations		11
4	Thickness of structure		16mm
5	Forming shaft diameter		70mm
6	Chains		1 inch
7	H steel		350mm
8	Sleeve		galvanized pipe with color coating
9	Screen		Text screen /touch screen
10	Type of cutting		Roll formed and length-set cutting
9.	Control system		PLC Delta and Inveter Delta
10.	Install dimension(depend on the final design)		8.2m×1.5m×1.2m
11.	Total weight (Approx)		6.5T

No	Name		Quantity	Remarks
1	Decoiler		1set	Up to customer
2	Main machine	Pre-cutting device	1set	Up to customer
		Feeding device	1set
		Roll forming system	1set
		Post cutting device	1set
		Hydraulic system	1set
3	Electric control system		1set
4	Supporter / Automatic Stacker		1set

Flow Chart
Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→
Products receiving

Machine Components

Description
1. Material of rollers:45# steel,roller surfaces polishing, hard plating
The polished surface and the heat treatment towards the molds also can keep the molding plate surface
smooth and not easy to be marked when it is being stamped.
2.We have a professional design team
3.Can also design and manufacture according to customer's requirement

Competitive Advantage:

1. Professional	15 years' rich experience! a.Specialized in roll forming machine since 1998. b.Keeping improving the quality.
2. Low price	Save your money from every part! a. Low labor cost; b. Convenient transportation; c. Complete supporting industries.
3. PLC	Ensuring high accuracy and easy to operate! Full Automatic: Just input length of the sheets and numbers of the piece you need, then the machine will start to work as your order.
4. OEM / ODM	Customers’design, color & logo are also accepted! Our specialized experts and skilled workers keep devoting their hard working to ensure the machine with high quality.
5. One-Years warranty, whole life service	Keep troubles far away from you! Within the One-YEAR period, we could supply you the replacement parts free of charge for any damaged parts caused by quality problems .
